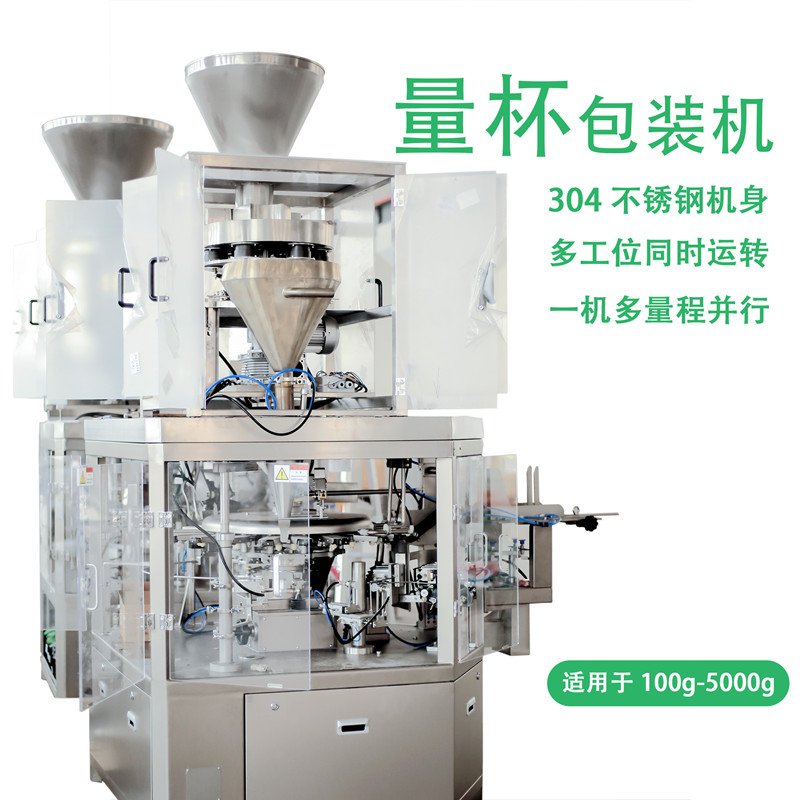

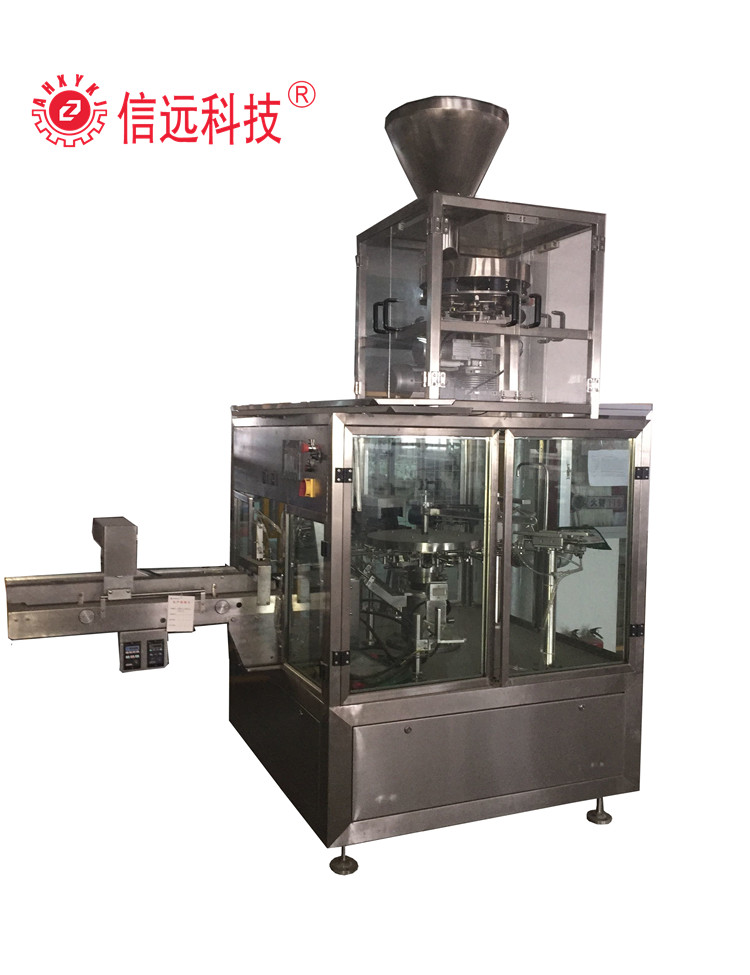

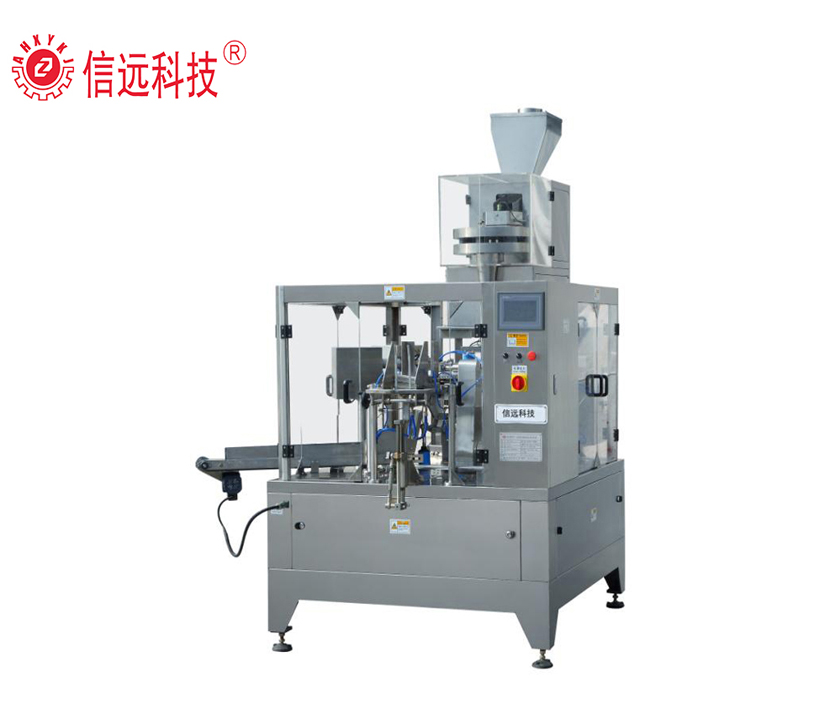

Automatic rotary pouch salt sugar sesame packing machine is used for automatic weighing and packing for salt/sugar industry. It can achieve bag picking, material weighing, filling, coding and sealing fully automatically under set parameter. This packing machine can suit for various bag size easily by one button press, then the machine will adjust automatically. It is normally matched with volumetric cup weigher, output conveyor, weight checker and metal detector to form a whole production system.
- Unit configuration: volumetric cup weigher, premade bag packing machine, output conveyor
- Material: contact parts S.S 304 (or S.S 316L if need)
- Electric parts brand: Siemens/Schneider/Omron/Delta/ABB etc
- Packing speed: (25-60)bags/min
- Filling range: 200g--1000g
- Applied material: sugar, salt and other fine granule material
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Parameter:
Model
XYS8-200
XYS8-300
Configuration
Given-bag packing machine
+ Measuring cup weigher
+ Conveyor
Packing speed(bag/min)
25~60
Measuring range(g/bag)
250~500
Measuring accuracy
±0.5% to ±2%
Given-bag size(mm)
L:100~350
W: 100~210
(adjustable)
L: 100~450
W: 200~300
(adjustable)
Power supply
AC 380V ±10% 50HZ
Optional device
Weight sorter/Metal detector/Lifting elevator
Transportation&After Service
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
