Products Details:

The zb-500n internal vacuum packing machine can realize automatic feeding, weighing, bag-making, filling, shaping, vacuuming, sealing, bag-cutting and conveying of finished products in one. It can turn the packaging of materials into a small hexahedron with high added value and fixed weight. Fast packaging speed, stable operation. The machine is widely used in the vacuum packing of grain products such as rice and coarse grains and coffee and other powder materials;

Scope of application:

Powder materials (e.g. coffee, yeast, cream, food additives, metal powder, chemical products)

Granular materials (e.g. rice, coarse grains, pet food)

Technical Data:

Packing speed: 15-18 bales/min

Package weight: 100g-1000g·

Bag-making form: hexahedron

Bag-making size: (60-120) x (40-60) mm (L*W)

Measurement accuracy:±1‰~5‰

Air source pressure: 0.6mpa

Air consumption: 0.6m3 /min

Allows the bag material diameter: 500 mmΦ

Coil diameter of paper core:Φ75 mm

Overall power: ~13Kw

Power supply: three-phase 380V 50Hz

Unit weight: ~2000Kg

Unit size: 6000x2800x3200mm

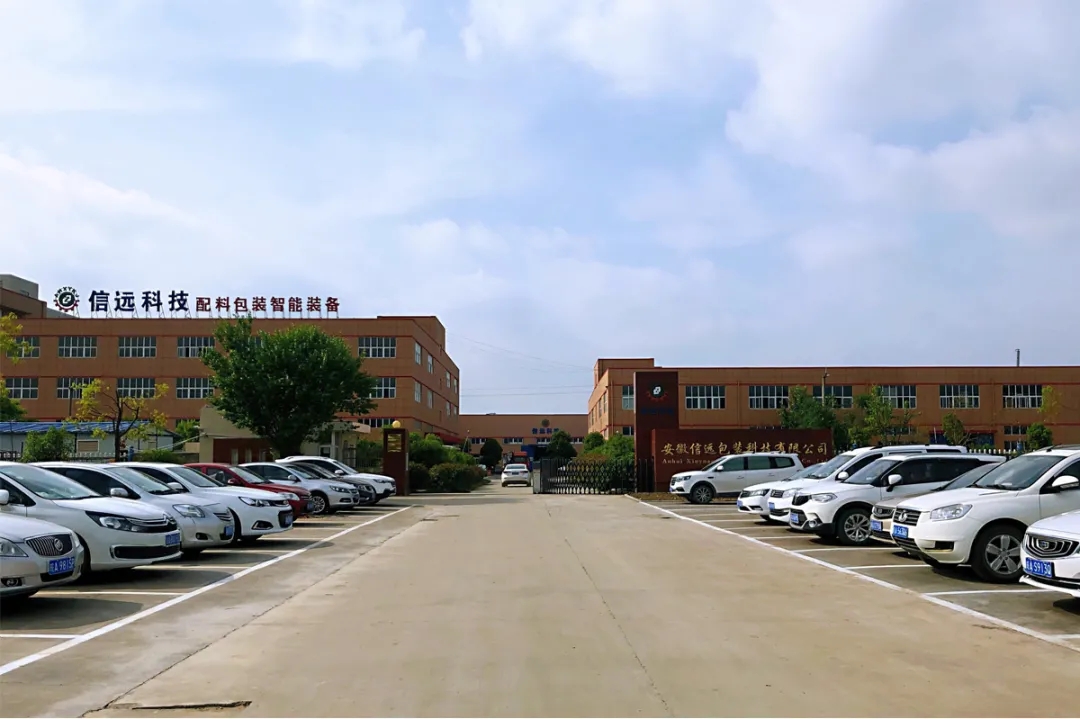

Anhui Xinyuan Packing Technology Co., Ltd was founded at year of 2001.We provide our customers total project solution, customized production line design, manufacturing, installation and commissioning, technical training, after sales services.We win widely customer recognition with our modern technology, first class products and reliable services. Contact today!
