Fully automatic hexahedral vacuum packing machine

The zb-500n internal vacuum packing machine can realize automatic feeding, weighing, bag-making, filling, shaping, vacuuming, sealing, bag-cutting and conveying of finished products in one



Inquiry now
products Details

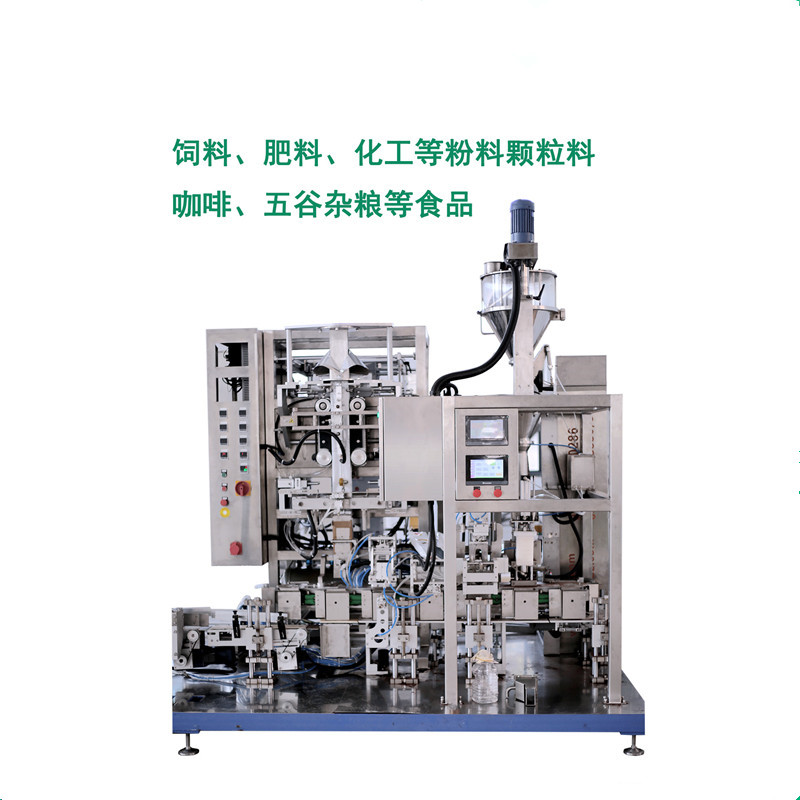

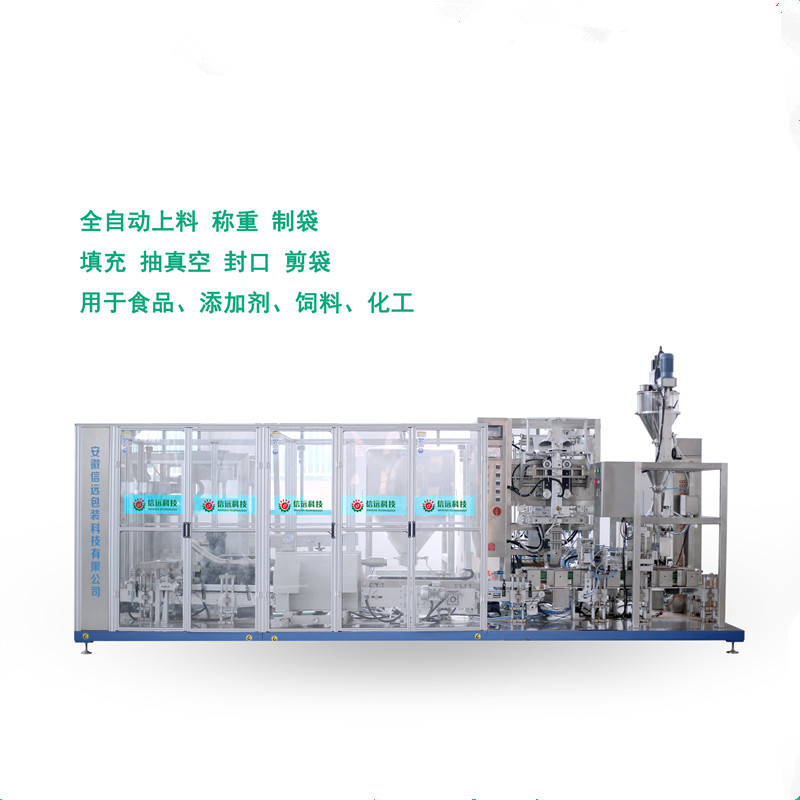

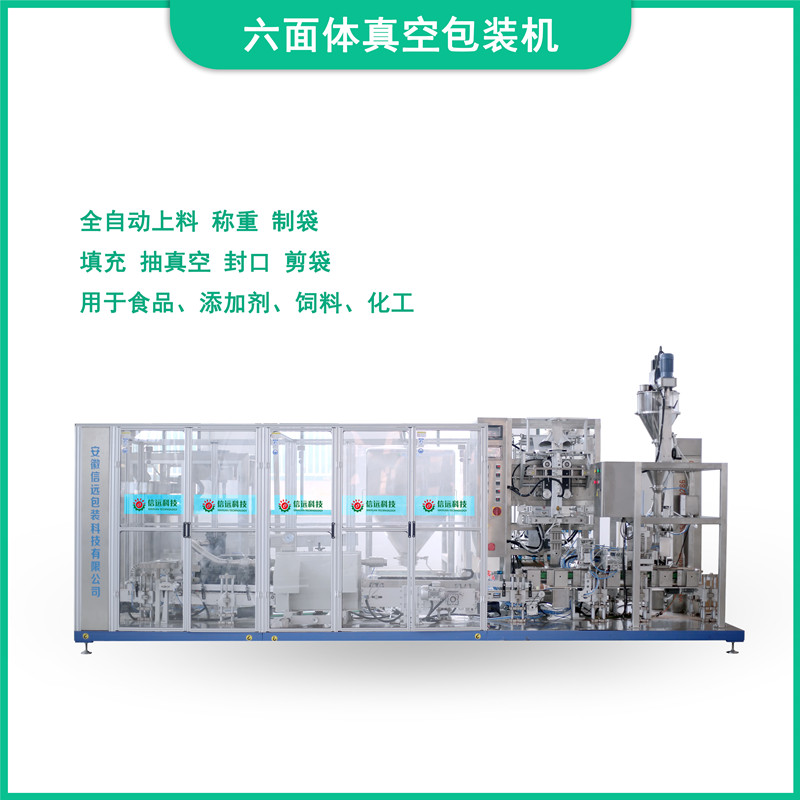

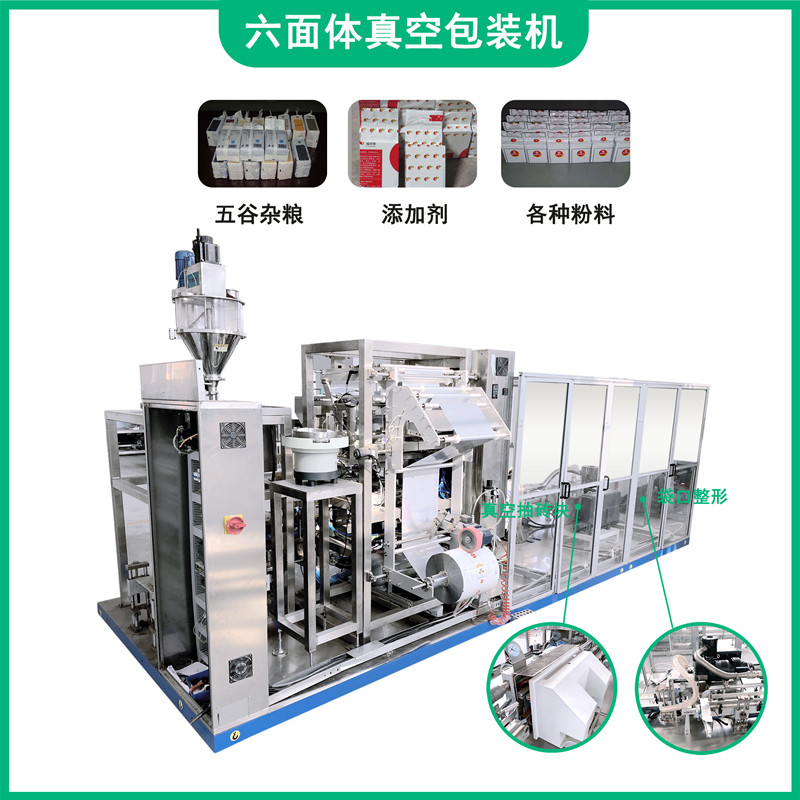

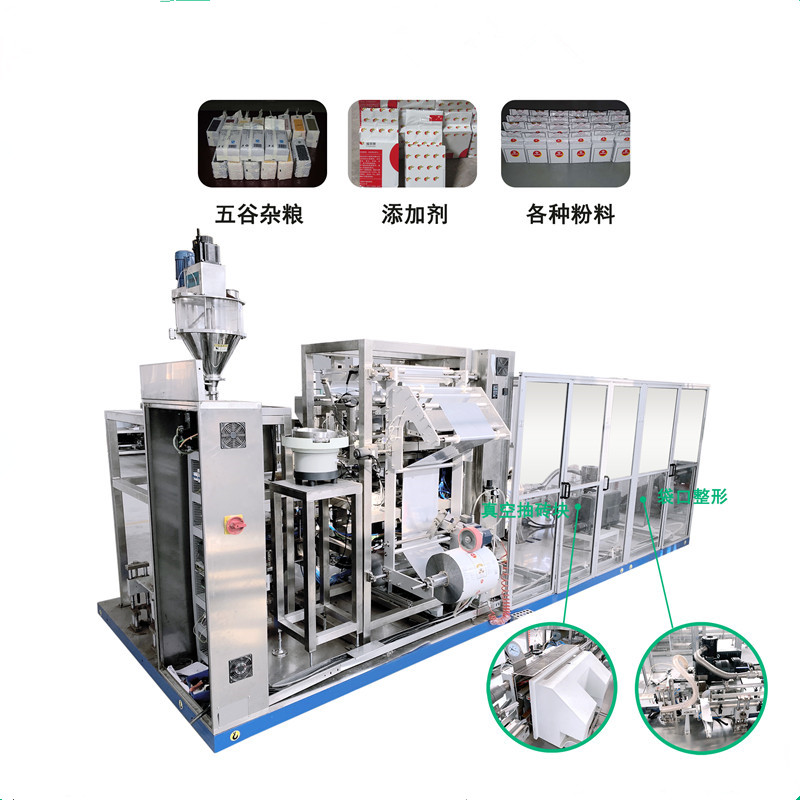

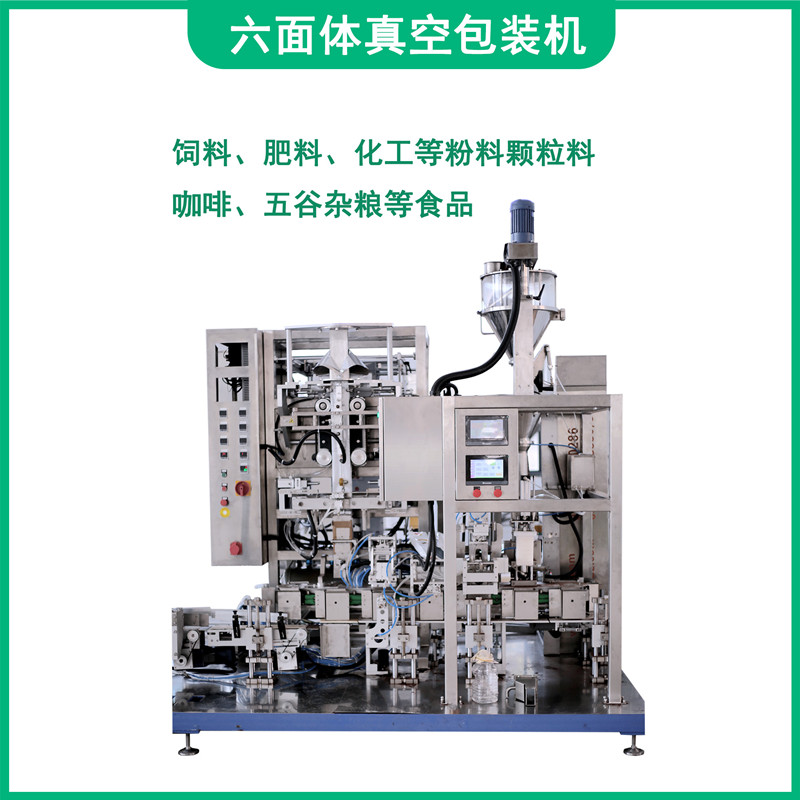

Fully automatic hexahedral vacuum packing machine


Products Details:

The zb-500n internal vacuum packing machine can realize automatic feeding, weighing, bag-making, filling, shaping, vacuuming, sealing, bag-cutting and conveying of finished products in one. It can turn the packaging of materials into a small hexahedron with high added value and fixed weight. Fast packaging speed, stable operation. The machine is widely used in the vacuum packing of grain products such as rice and coarse grains and coffee and other powder materials;


Scope of application:

Powder materials (e.g. coffee, yeast, cream, food additives, metal powder, chemical products)

Granular materials (e.g. rice, coarse grains, pet food)


Fully automatic hexahedral vacuum packing machine


Did you find our  machine interesting?

We will help you with selecting the machine, and suggest tailor-made solutions.


Notice

1. provide customized design for special requirement

2. Provide optional device as per actual need


Technical Data:


Packing speed: 15-18 bales/min

Package weight: 100g-1000g·

Bag-making form: hexahedron

Bag-making size: (60-120) x (40-60) mm (L*W)

Measurement accuracy: ±1~5

Air source pressure: 0.6mpa

Air consumption: 0.6m3 /min

Allows the bag material diameter: 500 mm Φ

Coil diameter of paper core: Φ 75 mm

Overall power: ~13Kw

Power supply: three-phase 380V 50Hz

Unit weight: ~2000Kg

Unit size: 6000x2800x3200mm



Transportation&After Service

◎All the machine shall be packed in Export wooden box;

◎Engineers are available to do service abroad;

◎Training &Technical instructing lessons shall be provide during installation;

◎Video instruction installation is also available if customer have professional technical engineers;

◎One year warranty is provided for customer.




Anhui Xinyuan Packing Technology Co., Ltd was founded at year of 2001.We provide our customers total project solution, customized production line design, manufacturing, installation and commissioning, technical training, after sales services. We win widely customer recognition with our modern technology, first class products and reliable services. Contact today!
