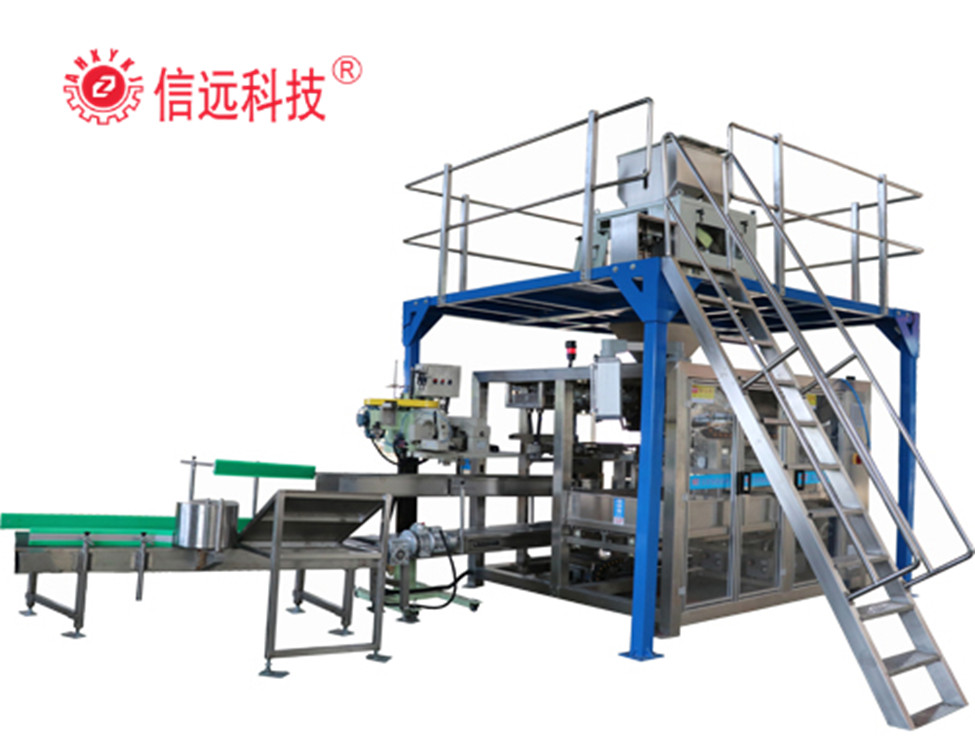

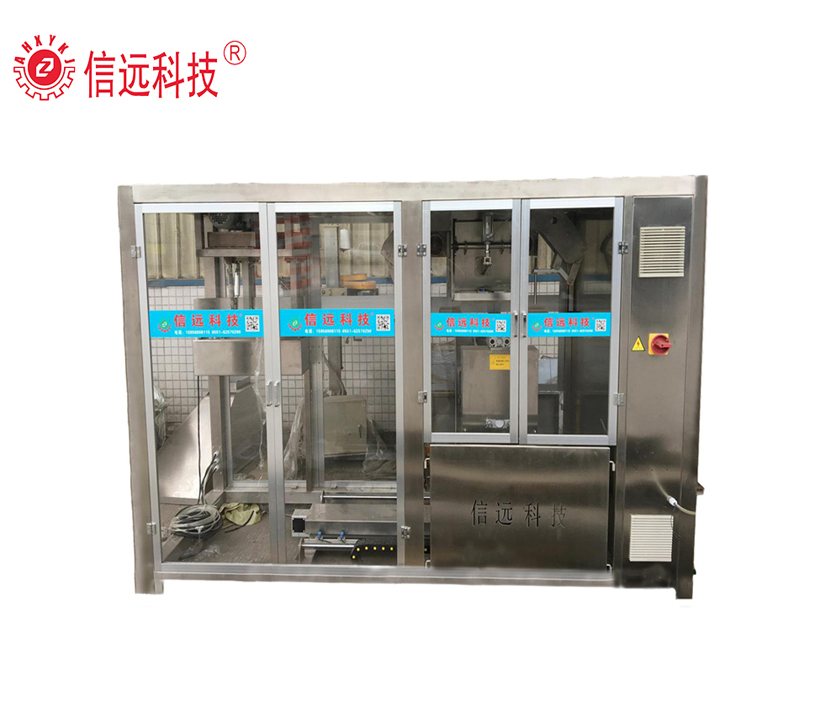

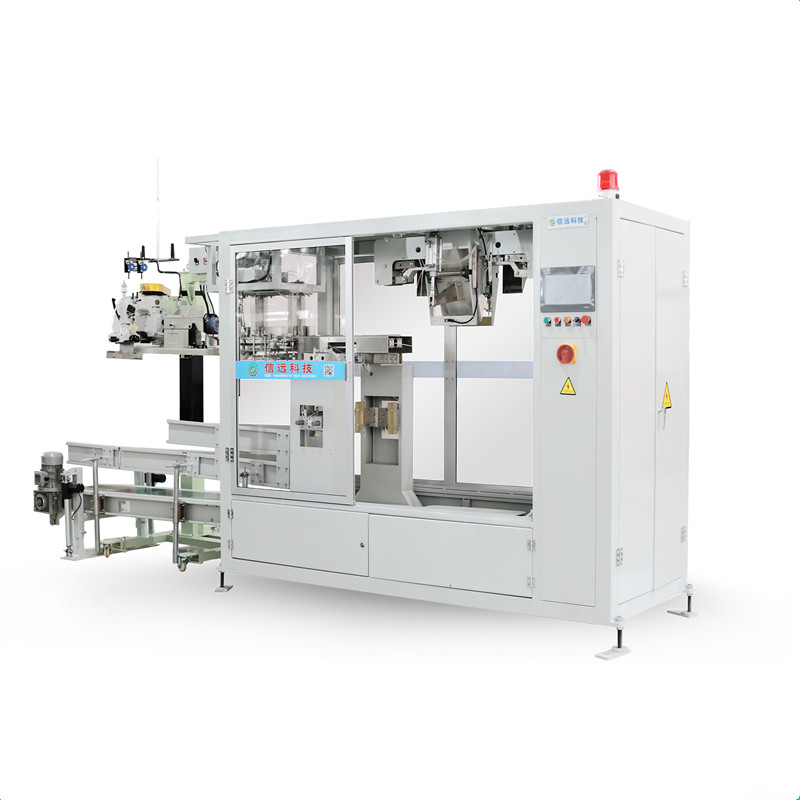

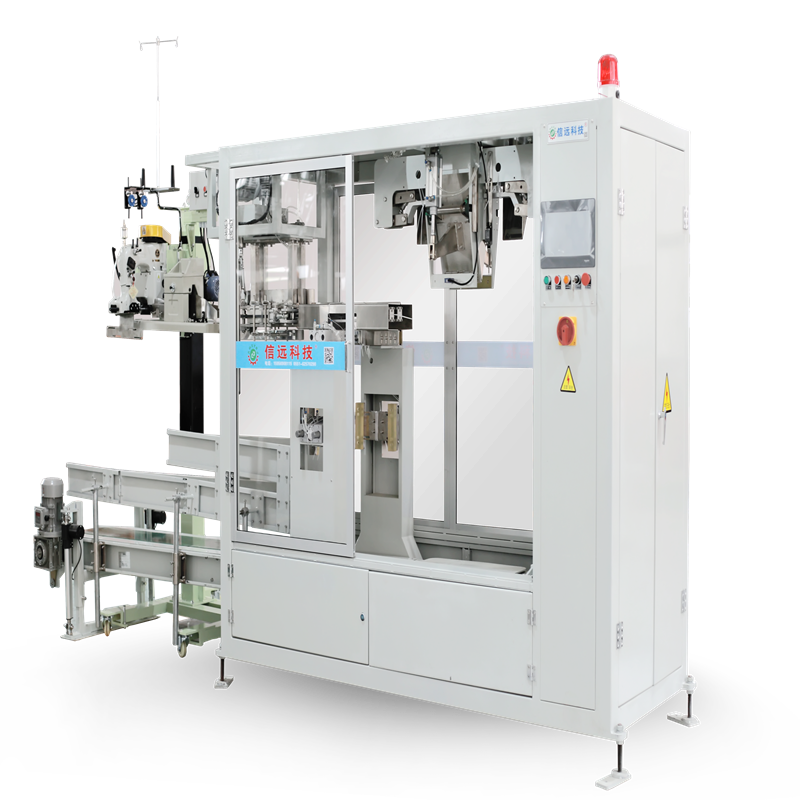

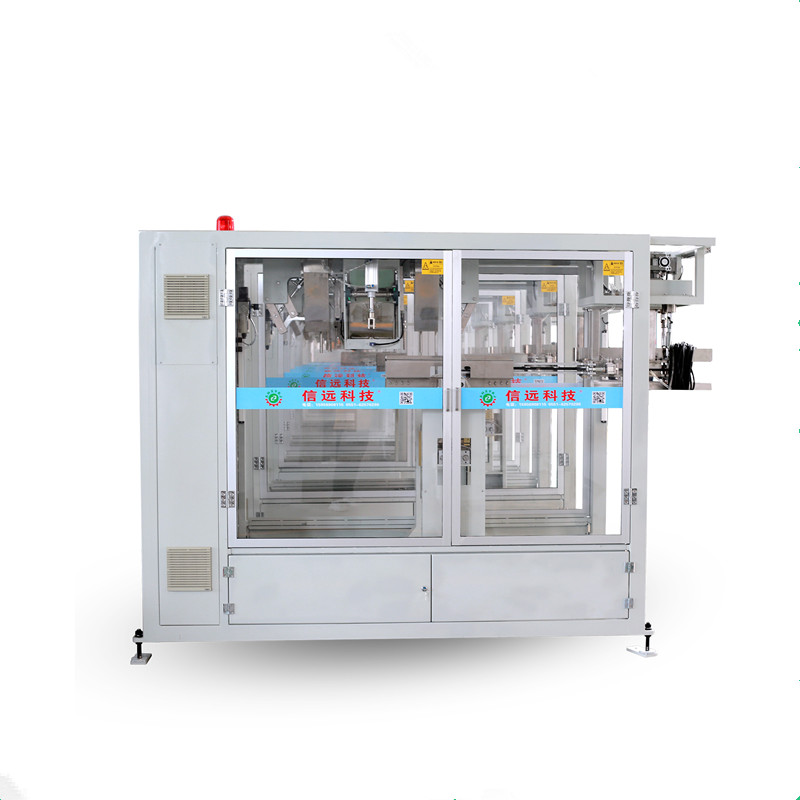

XYG-600B automatic packing machine is developed by our
company to solve the problems of less available workers, higher labor cost and
unstable manual operating quality for feed industry. It uses Siemens PLC
control system, achieve bag positioning, inner bag thermal sealing, bag sewing,
labeling.
This unit uses Omron photoelectric system to complete
several important aspects of monitoring.
◎Manual bagging monitoring: the material door is equipped with a travel switch to detect whether the bag is tightened or not. If not, the bag will be discarded automatically.
◎bag error monitoring: If the bagging action is not achieved according to the standard, the error signal will be automatically transmitted to the packing scale to avoid production interruption, material waste and on-site environmental pollution caused by blind filling of materials.
◎Miscellaneous bag monitoring: When the label is not in place, disconnected, and foreign object interference occurs, the system will promptly alarm.
Working process:
Automatic weighing --- artificial bagging --- material filling material stocky --- dust --- holding bag delivery --- automatic label --- fold the side seam --- finished product output and palletizing system smooth docking
automatic bagging unit:
◎Control system: Siemens PLC
◎Human machine interface: 10 inch touch screen
◎Vacuum system: German Baker
◎Sucker: Swedish PIAB
◎Photoelectric system: Omron
◎bagging speed: 8-12 times / minute
◎bagging error rate: no more than 0.1%
◎Customized semi-closed type to suppress dust pollution
◎Power: about 7.5KW

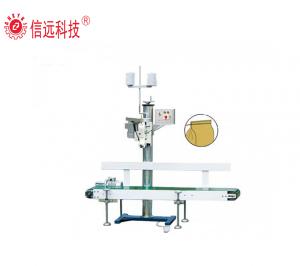

integrated sealing machine (automatic disconnection alarm)
◎bag mouth suture line, enveloping mouth strip in one (optional);
◎bag mouth repair; dust removal
◎Automatic folding, automatic disconnection
◎can be linked with the label machine to sew the label on the pocket
◎can be used alone or in conjunction with the bagging machine
◎height, adjustable stitch length
◎Power: 6.0 KW
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Data:
| Model | XYG-600(fully-automatic) | XYG-600B(semi-automatic) |
| Bag size(mm) | L: 800~1000 W: 450~600 | |
| Bag material | Kraft bag, Woven bag, PE laminated bag | |
| Sealing type | Straight sealing | |
| Package range(kg) | 10~50 | |
| Accuracy | ±0.2% to± 0.3% | |
| Speed(bags/hr) | 500~800 | |
| Power rate(kw) | around 7.5 | |
| Power supply | AC 380V/50HZ | |
| Compressed air(Mpa) | 0.6~0.8 | |
| Noise | around 77dB | |
| Environment Temp. | ~20 ℃ to +40 ℃ | |
Transportation&After Service:
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
