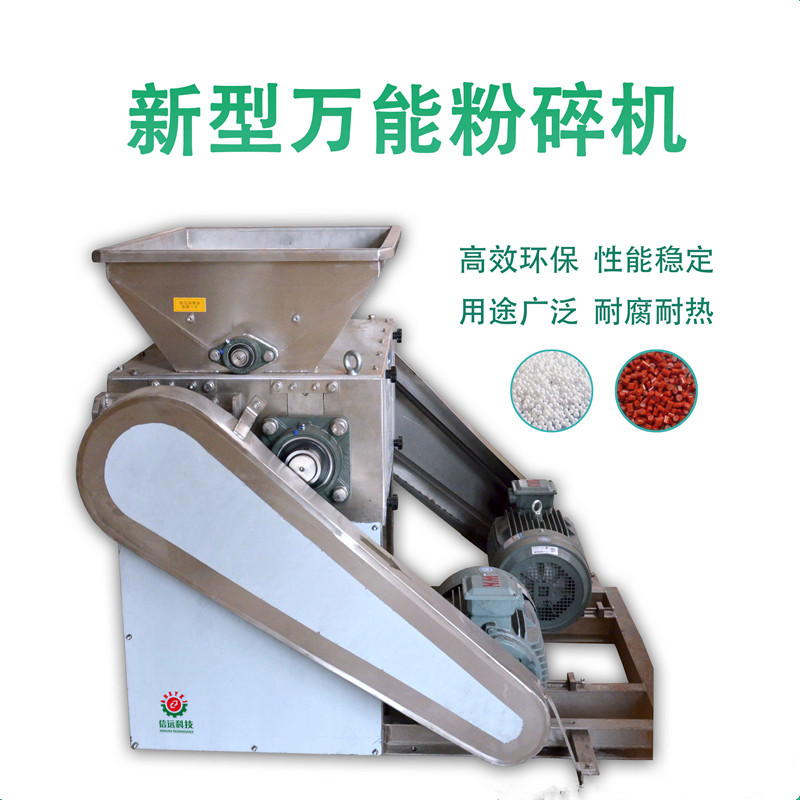

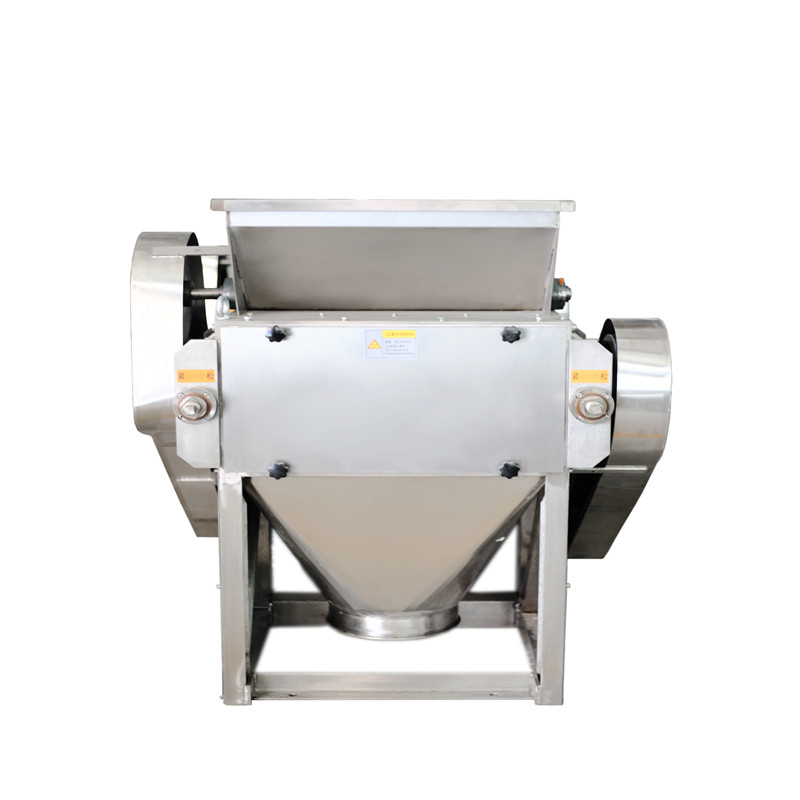

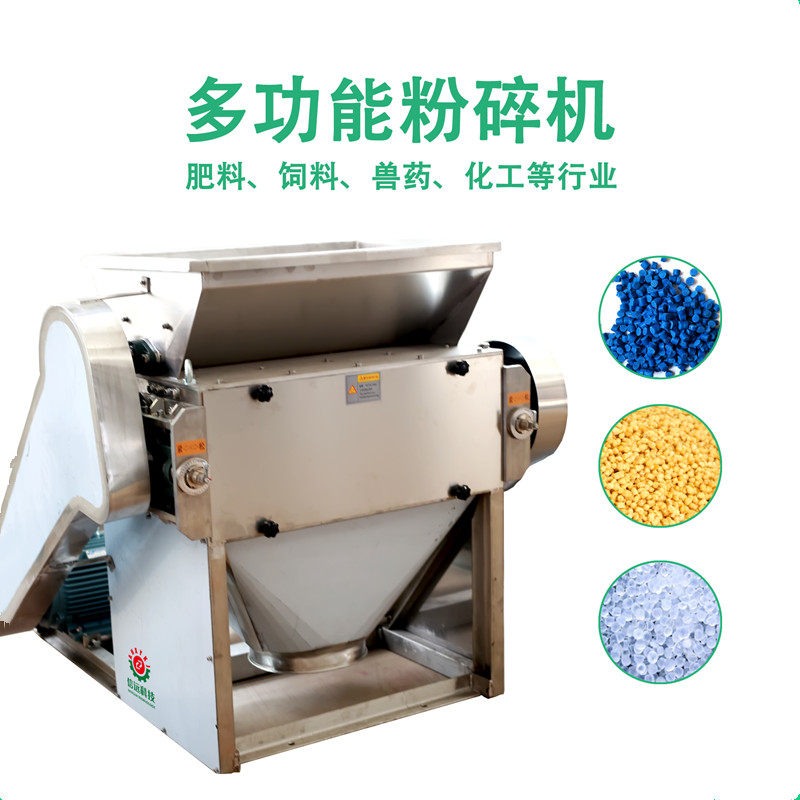

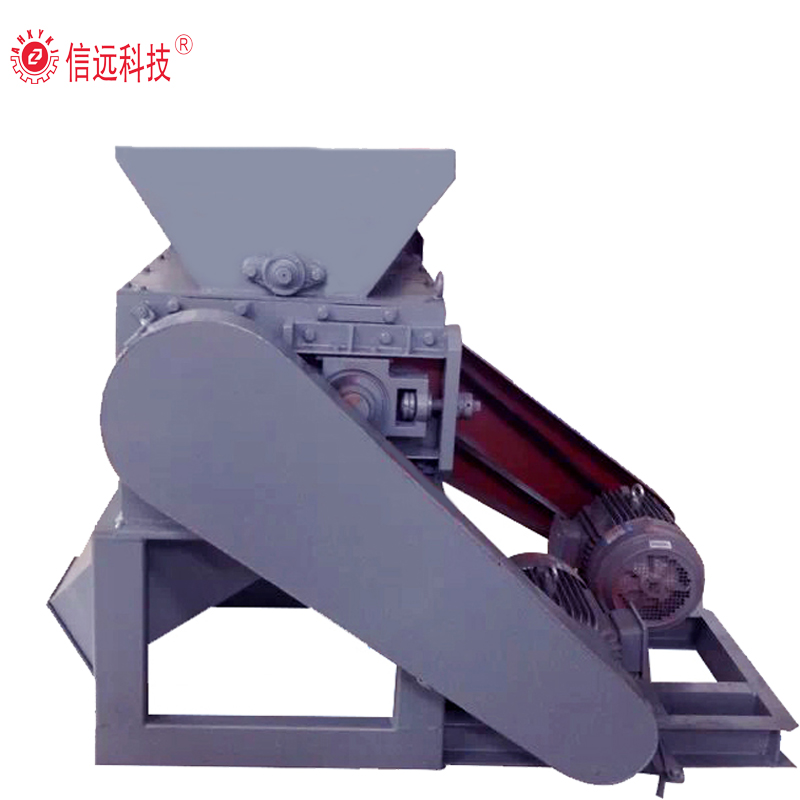

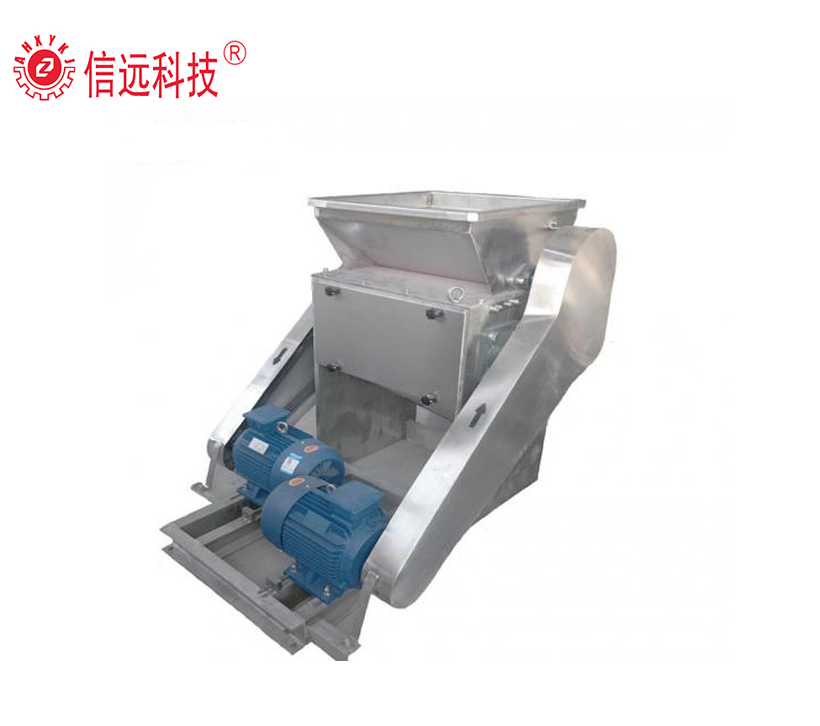

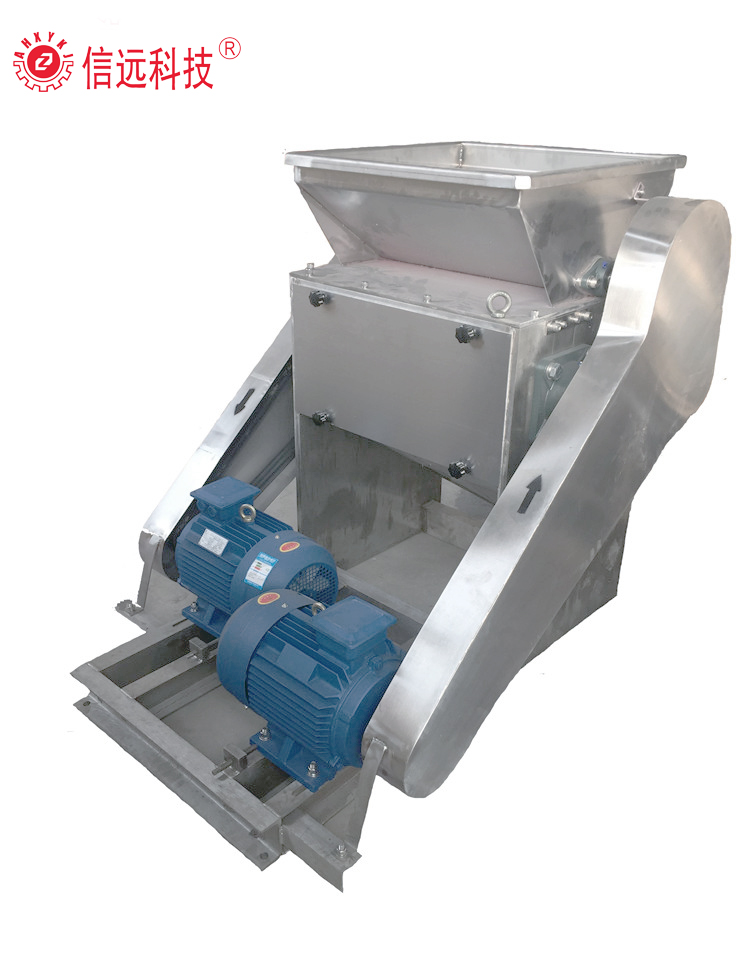

1. Sinran patent(Patent No.: 03219876.0)
2. Used for Urea pulvering in fertilizer industry.
3. Compact structure and small area coverage
4. Easy operation and low power consumption
5. Strong grinding ability with high efficiency;Wear resistant
6. Few powder at inlet or outlet port.
7. Machine material can be carbon steel, contact-parts-S.S 304 or full machine S.S 304 to choose.
Does this 3 Tons stainless steel Urea grinding Pulverizer fits your fertilizer production requirement? Please feel free to contact us for more details and we will help you design the right solution and model set for you.
Notice:
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Data:
Model
SG600
SG800
Capacity(T/h)
3-4
5-6
Input material size(mm)
≤5
≤5
Output material size(mm)
≤0.2-0.5
≤0.2-0.5
Rotating speed(r/min)
800-1000
800-1000
Roller diameter(mm)
Φ300
Φ400
Motor power(kw)
11
15
