Auto dye packing machine for 10-50 kg big bag ultra fine powder pigment

Ultra-fine powder automatic packing machine is a specialized equipment to achieve auto bag picking, fastening, opening, filling and sealing
  • Item NO.:

    XYG-600UFP
  • Product Origin:

    China(Mainland)
  • Shipping Port:

    SHANGHAI
Inquiry now
products Details

Ultra-fine powder automatic packing machine is a specialized equipment to achieve auto bag picking, fastening, opening, filling and sealing.Automatic powder packing machine uses PLC HMI control, easy operation.ultra fine powder packing machine adopts modern industry design with solid structure, easy operation, stable performance and less maintenance.dye powder packing machine can fill low proportion, much air ultra-fine powder, integrate bag supplying, opening, fastening, filling, transferring, bag mouth arrangement, sealing etc.Good sealing performance during packing, avoid powder pollution.

◎Applied for flat plastic bag, paper plastic bag, auto bag fastening, opening, filling.

◎Bag detecting and fastening detecting function. No filling when there is no bags or not fastened well so environment is protected better.

◎Adopts close design for bag fastening and filling device, separate filling  and de-dusting channel to maximum avoid powder leakage. Fully closed design for the whole machine.

◎Support filled bags with vibrating base to tamp the powder and discharge the air to make sure the best sealing result.

◎All fine apparatus are in close condition to avoid powder adherence.

◎Adopts famous brand apparatus to guarantee equipment long time reliable performance.

◎Auto failure detecting and sound/light alarm. Doors with interlocking system to keep operator safe.

◎Special auxiliary air discharging device to reduce air in the bag before filling, avoid mixture between powder and air, increase the filling speed.

◎Adopts double air discharging structure to increase the speed, and add the motion of bag flutter to avoid second pollution. Save the cost and make sure the accuracy.

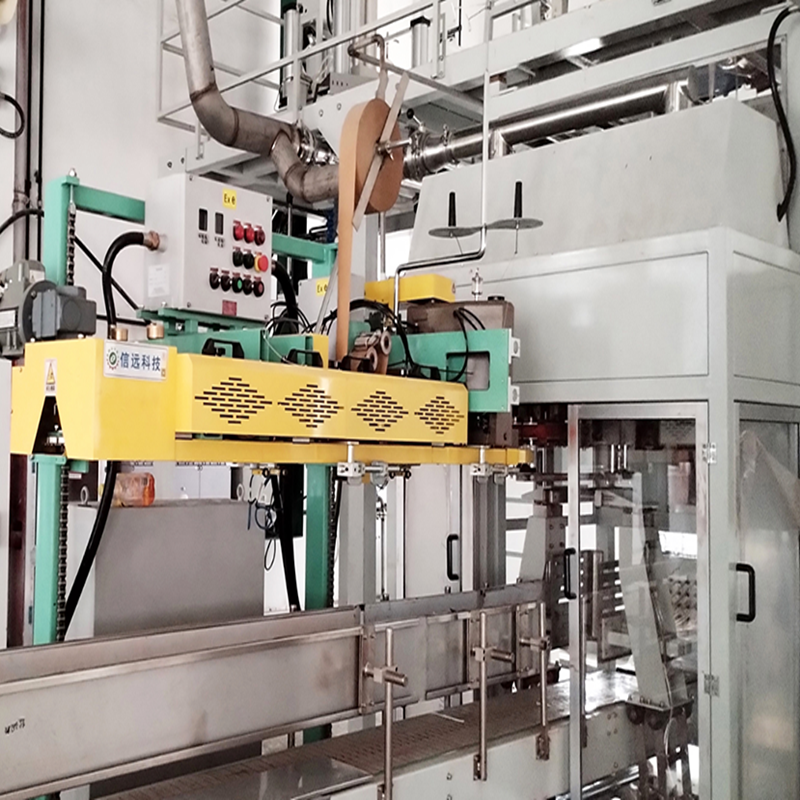

Ultra-fine powder automatic packing machine


Did you find our  machine interesting?

We will help you with selecting the machine, and suggest tailor-made solutions.


notice

1. provide customized design for special requirement

2. Provide optional device as per actual need


Technical Data:

Model XYG-600UFP
Applied material Ultra-fine powder
Bag material Film bag, paper bag, woven bag
Speed 60bags~120bags/hour
Filling range 10kg~50kg
Bag size L: 1000mm~850mm
W: 520mm~400mm or customized
Sealing type Line sealing or heat sealing
Power supply AC380V/50HZ Single phase,AC380/50
Power 12KW


Transportation; After Service

◎All the machine shall be packed in Export wooden box;

◎Engineers are available to do service abroad;

◎Training &Technical instructing lessons shall be provide during installation;

◎Video instruction installation is also available if customer have professional technical engineers;

◎One year warranty is provided for customer.
