Automatic liquid bag packing machine for 10-50kg big bag heavy bag animal oil

Automatic bag filling machine is developed by xinyuan company to solve the high temperature oil bag filling problem.automatic oil bag packing machine can achieve the automatic filling and sealing by machine ,the seal is tight without leakage.

Inquiry now
products Details

Automatic bag filling machine is developed by xinyuan company to solve the high temperature oil bag filling problem.automatic oil bag packing machine can achieve the automatic filling and sealing by machine ,the seal is tight without leakage.

operating principle

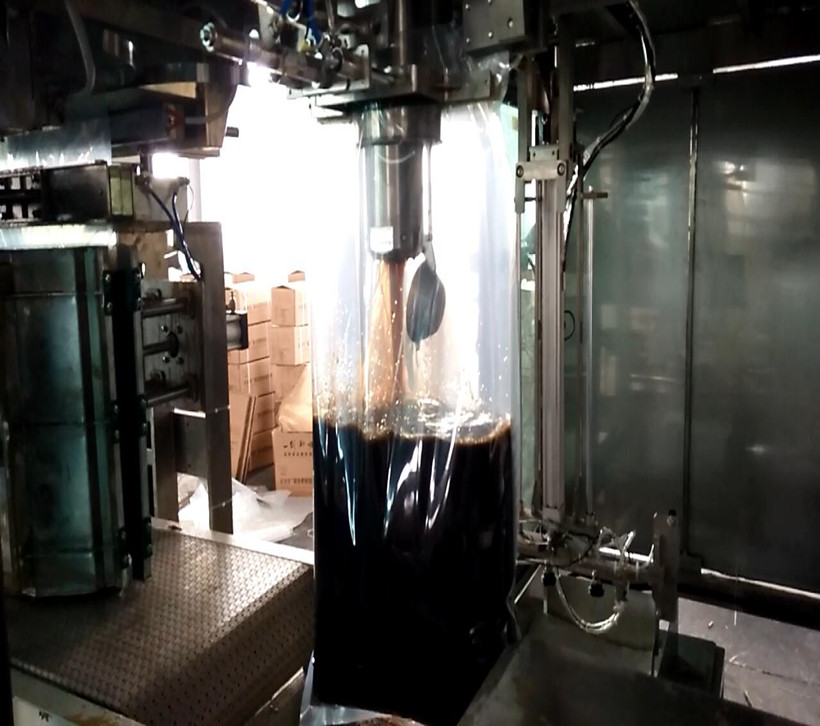

Manually put the bag in the filling station, manually give the working instruction, filling head down in place after the implementation of filling.

The filling head rises automatically in the filling process and returns to the position after the filling is completed.

The bag-holding mechanism moves to the filling station to pick up the bag, while the filling station returns to the bag-holding state and waits for bag-holding. Lifting is carried out when the bag is lifted upward. The bag-holding mechanism moves the filled packaging bag to the sealing station to perform the sealing. After sealing, wait for the next cycle. If there is no cycle, the bagging mechanism will be moved and replaced.

The system automatically moves the sealed packaging bag to the bag-unloading mechanism. The bag-unloading mechanism clamps the bag and performs the bag-unloading action. Then the packaged products are transported out to complete the entire packaging process.

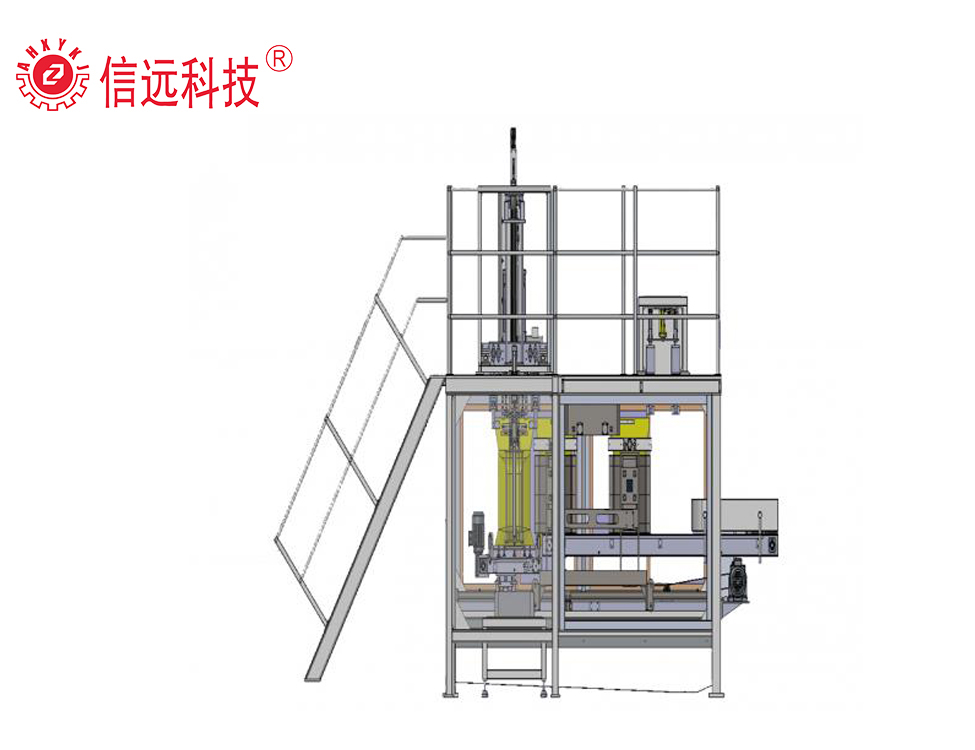

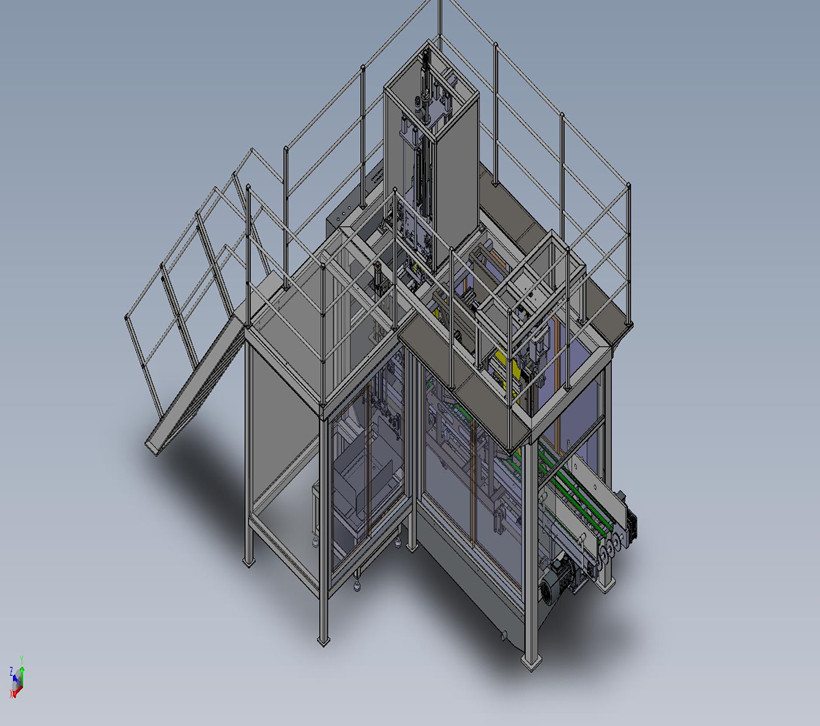

Automatic bag filling machine


Did you find our  machine interesting?

We will help you with selecting the machine, and suggest tailor-made solutions.


notice

1. provide customized design for special requirement

2. Provide optional device as per actual need




Unit description

1、packing speed:1-2bag/min

2、weighing range:10-25Kg/bag

3、bag material:Composite film bag or aluminum foil composite film bag

4、Bag type:bag premade

5、accuracy:±250g

6、The seal is tight without leakage

7、The machine all made 304 stainless steel



Transportation; After Service


◎All the machine shall be packed in Export wooden box;

◎Engineers are available to do service abroad;

◎Training &Technical instructing lessons shall be provide during installation;

◎Video instruction installation is also available if customer have professional technical engineers;

◎One year warranty is provided for customer.
