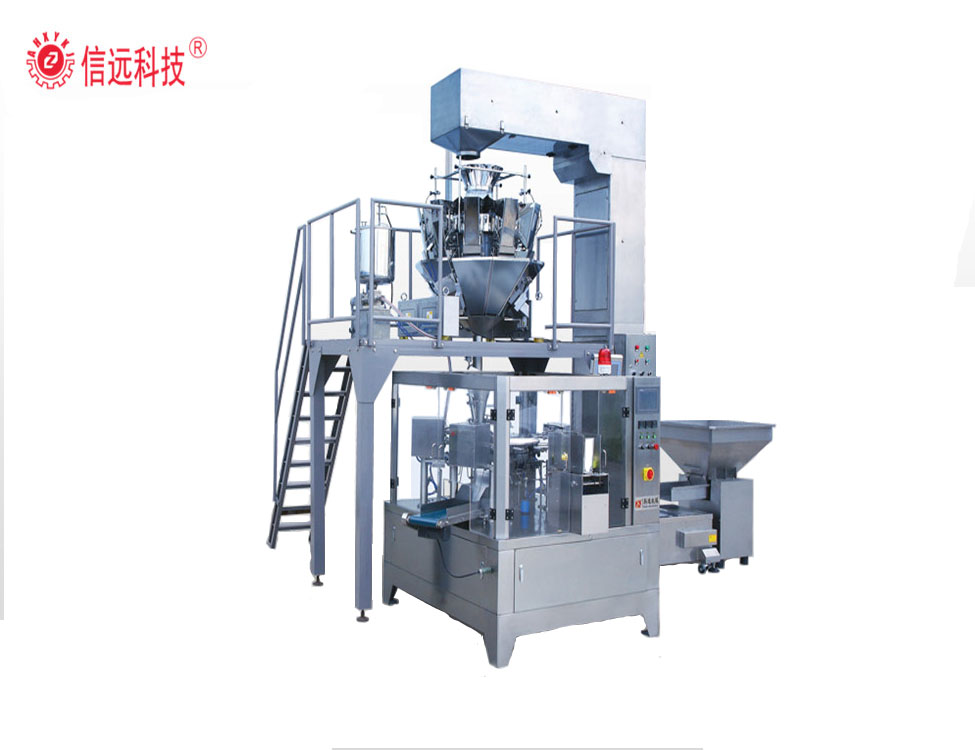

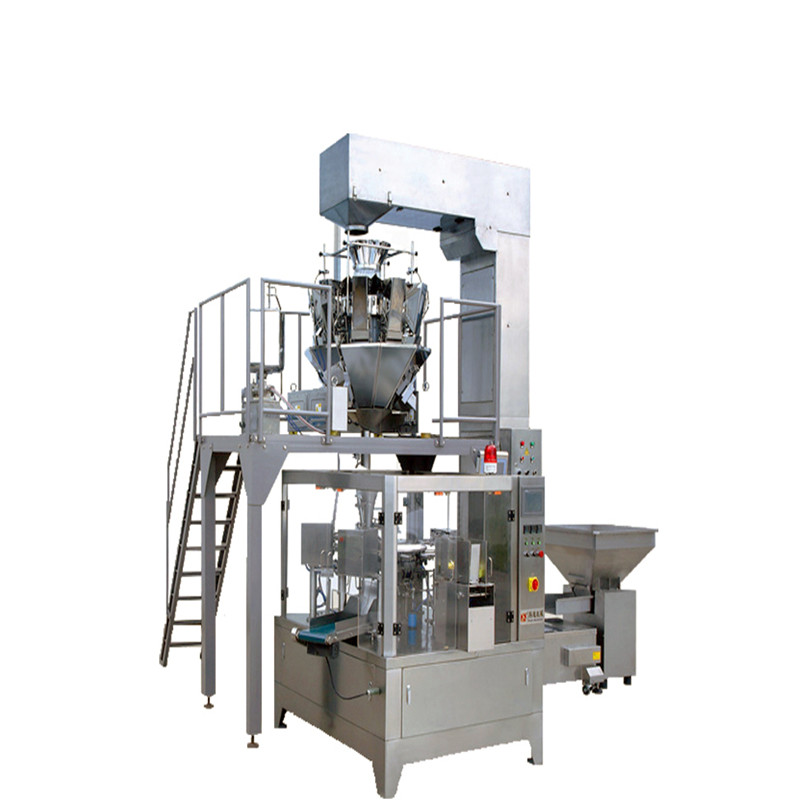

Premade doypack bag rotary granule pouch packing machine
Premade doypack bag rotary granule pouch packing machine is used for automatic weighing and packing for granule material. It is widely used in food, grain, nut, snack food, animal feed, chemical industry, conforming to GMP standard. It can achieve bag forming, material weighing, filling, packing, coding and sealing fully automatically under set parameter. It is normally matched with Z shape lifter, multi heads weigher, output conveyor, weight checker and metal detector to form a whole production system.

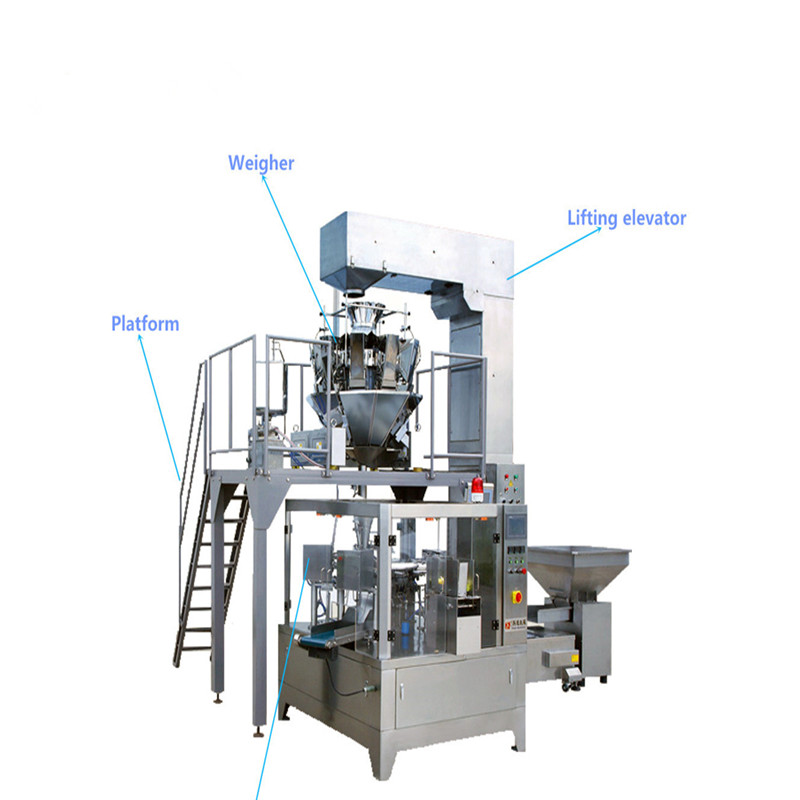

Unit configuration: film roller, coder, bag former, vertical heat sealing, horizontal heating and cutting
Material: contact parts S.S 304 (or S.S 316L if need)
Electric parts brand: Siemens/Schneider/Omron/Delta etc
Packing speed: (15-60)bags/min
Filling range: 10g--5000g
Applied material: granule form material such as cashew, peanut, sunflower seed, corn, animal feed, potato chips etc
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
|
Model |
XYG6/8-200 |
XYG6/8-250 |
XYG6/8-300 |
|
Configuration |
Given-bag packing machine |
||
|
Packing speed(bag/min) |
25~60 |
20~50 |
|
|
Measuring range(g/bag) |
5~1000 |
5~1500 |
100~2500 |
|
Measuring accuracy |
±1% to ±2% |
||
|
Bag style |
Four-side-sealing bag/Doypack/Handbag |
||
|
Given-bag size(mm) |
W:100~200 |
W:180~250 |
W:200~300 |
|
Power rate(kw) |
2.5 |
2.5 |
3 |
|
Optional device |
Transfer conveyor/Weight sorter/Metal detector/Automatic packaging, sealing,packing,and stacking system for secondary packaging |
||
Transportation&After Service
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
