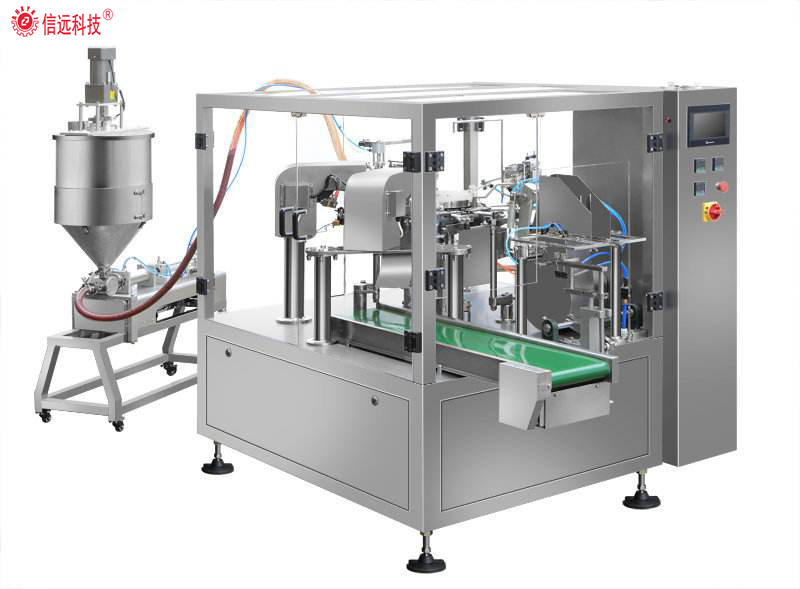

Premade zipper bag doypack liquid pouch packing filling machine is used for automatic weighing and packing for liquid or paste type material in premade bag. It can achieve bag picking, material weighing, filling, coding and sealing fully automatically under set parameter. This packing machine can suit for various bag size easily by one button press, then the machine will adjust automatically. It is normally matched with storage tank, piston pump, output conveyor, weight checker and metal detector to form a whole production system.
- Unit configuration: piston pump, premade bag packing machine, output conveyor
- Material: contact parts S.S 304 (or S.S 316L if need)
- Electric parts brand: Siemens/Schneider/Omron/Delta/ABB etc
- Packing speed: (15-60)bags/min
- Filling range: 10g--5000g
- Applied material: liquid material like water, oil, sauce, paste etc.
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Parameter:
Model
XYG6/8-200
XYG6/8-250
XYG6/8-300
Configuration
Given-bag packing machine
Packing speed(bag/min)
25~60
20~50
Measuring range(g/bag)
5~1000
5~1500
100~2500
Measuring accuracy
±1% to ±2%
Bag style
Four-side-sealing bag/Doypack/Handbag
Given-bag size(mm)
W:100~200
W:180~250
W:200~300
Power rate(kw)
2.5
2.5
3
Optional device
Transfer conveyor/Weight sorter/Metal detector/Automatic packaging, sealing,packing,and stacking system for secondary packaging
+Auto-filling machine
+Conveyor
/Zipper bag/Paper bag/others
L:100~350
L:100~350
L:100~450
Transportation&After Service
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
