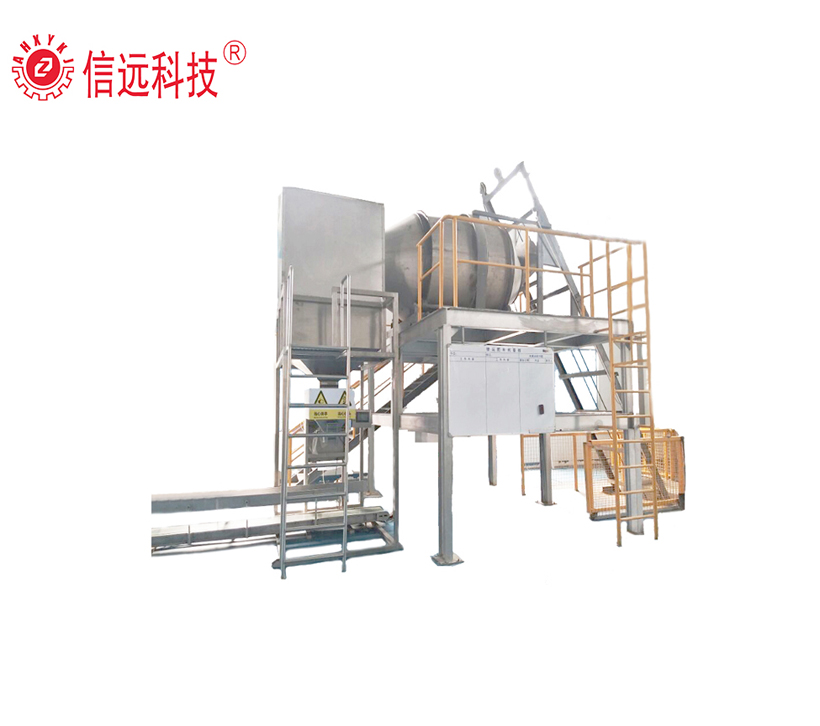

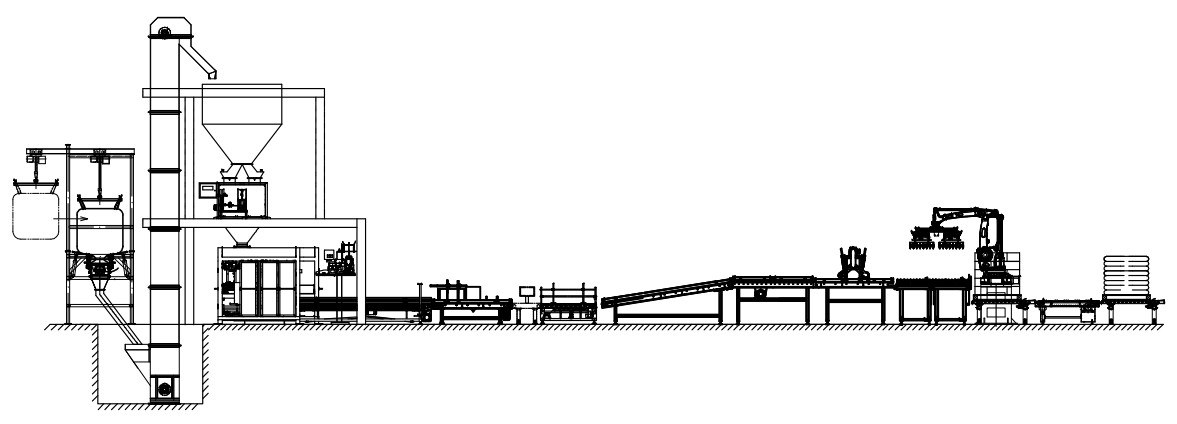

Composition of 25kg compound granular fertilizer packing line:
1. Batching system of of 25kg compound granular fertilizer packing line: including raw material storage silo, automatic feeding device, electric weighing system with hopper,electric control system of batching system
2.Lifting and stirring system of 25kg compound granular fertilizer packing line: including elevator, multidimensional efficient mixer
3. Quantitative packaging system of 25kg compound granular fertilizer packing line: including electric quantitative packing machine, conveyor, bag-sealing machine
4. Electric control system of 25kg compound granular fertilizer packing line: including PLC general control cabinet, customized software, setting display text, cable bridge
Does this 25kg compound granular fertilizer packing line fits your fertilizer production requirement? Please feel free to contact us for more details and we will help you select the right solution and model set for you.
Notice:
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Data:
| Production line | XYPF-8A | XYPF-10D | XYPF-15C | XYPF-20C | XYPF-30C | CZPF | PHB |
| Fertilizer form | Loose granule, crystal with good fluidity | ||||||
| Number of raw material types | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 3-4 | 4-6 |
| Production capacity(T/h) | 8-10 | 10-12 | 15-18 | 20-25 | 30-35 | 3-4 | 5-10 |
| Package type(kg) | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 |
| Weghing accuracy | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% |
| Batching hopper volume(m³/hopper) | 0.5 | 0.6 | 0.3-1.0 | 0.3-1.0 | 0.4-1.2 | 0.8 | 0.2-0.5 |
| Single time batching capacity(kg) | 350 | 350 | 500 | 500 | 500 | 50 | 50 |
| Power (kw) | 7-10 | 9-12 | 10-15 | 15-20 | 25-30 | 3-5 | 3-6 |
Transportation and After-sale Service:
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
