Veterinary animal powder medicine drugs production line implements the “Detailed Rules for GMP Inspection and Acceptance of Newly Constructed Veterinary Powders, Powders, and Premixes” of the Ministry of Agriculture. The new generation of veterinary powders, powders, premixes, automatic feeding, batching, mixing, and subassembly production lines are based on the original system equipment. The automatic washing and drying functions have been added, which fully comply with the requirements of the "Rules" of the Ministry of Agriculture.
Product Process:

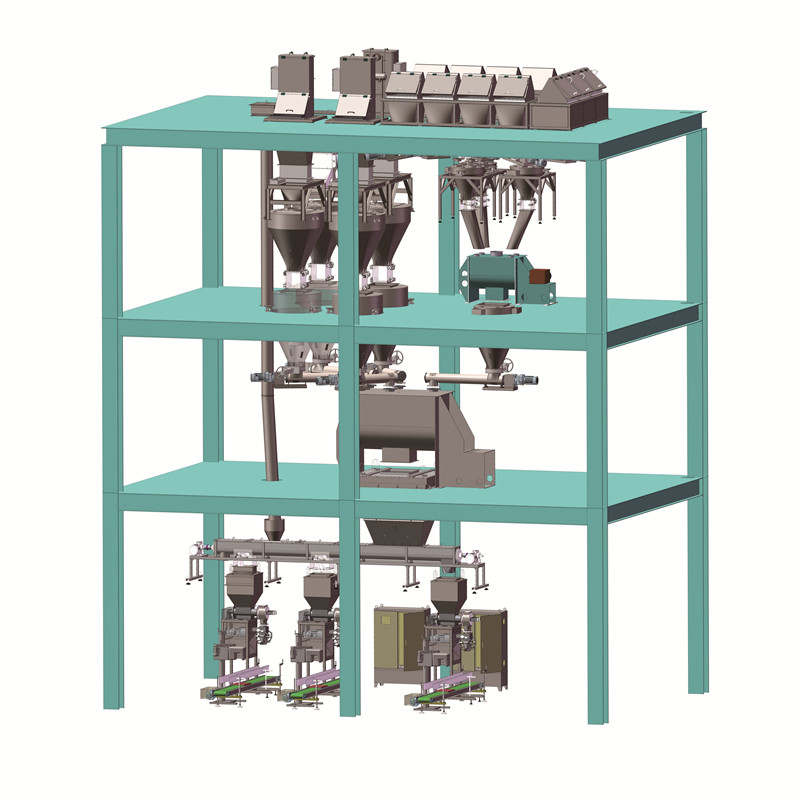

Sieving weighing 5-20 kinds of raw materials→Manual feeding or machine feeding→Positive pressure automatic feeding system（OR: Freight elevators feeding）→Main raw material high storage bin→Automatic discharge→Automatic mixing→Buffer bin→sample inspection→Automatic feeding→Spiral automatic weighing machine→Vertical automatic packing machine→Automatic weight selection→Automatic delivery product→Manual boxing。
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Data:
1. Packing materials: traditional Chinese medicine powder, powder mixed materials.
2. Feeding capacity: >7.5 T/h with material settling time.
3. Production capacity: >4T/h
4. The mixture coefficient is less than 2%
5. The residual rate in the mixer < 0.5%.
6. Packing specification: 500g/bag.
7. Measurement accuracy: ±1.5%
8. Packing speed: 500g/bag, 30-35bags/min.
9. The finished product qualified rate >99.5% (including the sealing level and flat, the non-stick powder and the non-leakage powder, the number of test bags and the exhaust)
Transportation; After Service
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
This system includes powder batching, mixing, transferring, packing with auto cleaning and drying function. good for veterinary powder form medicine production.
