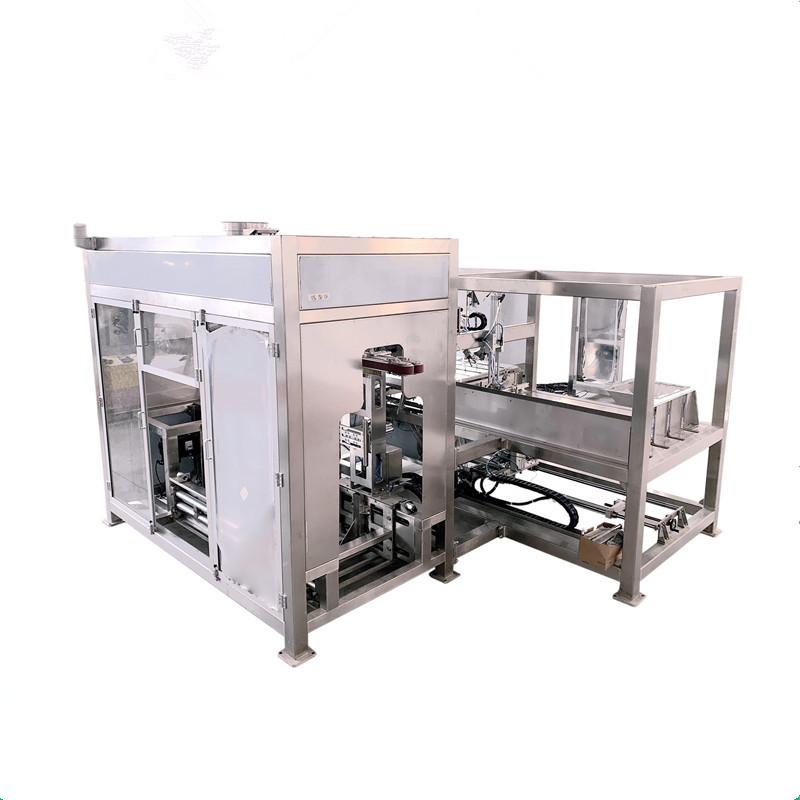

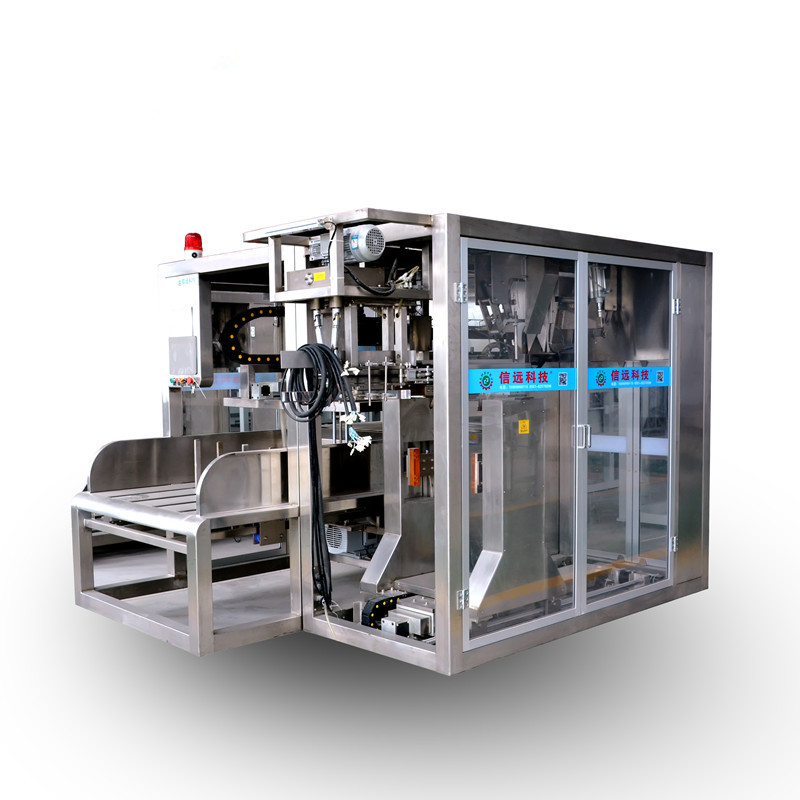

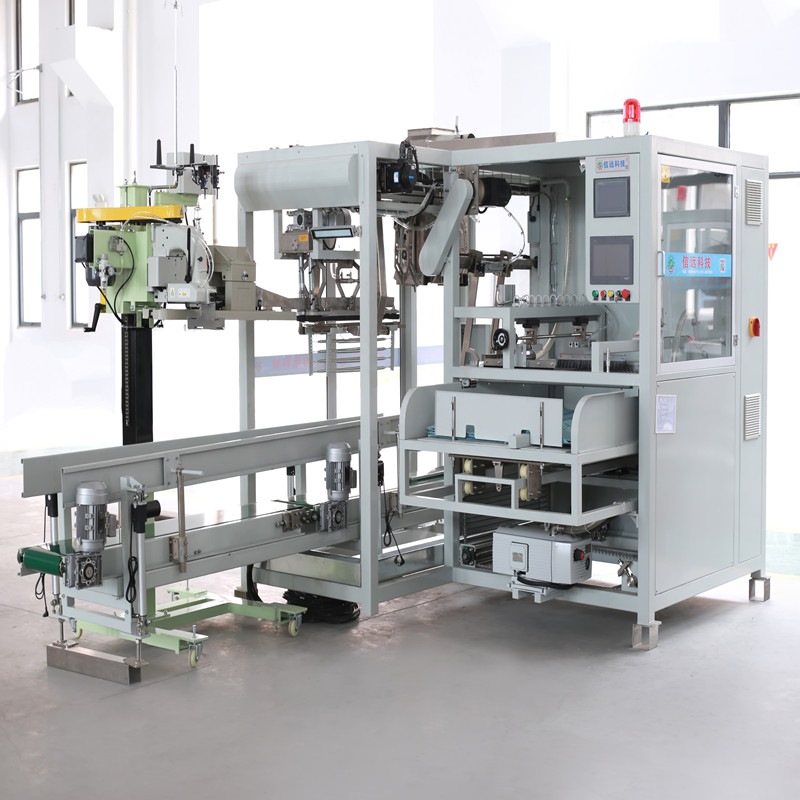

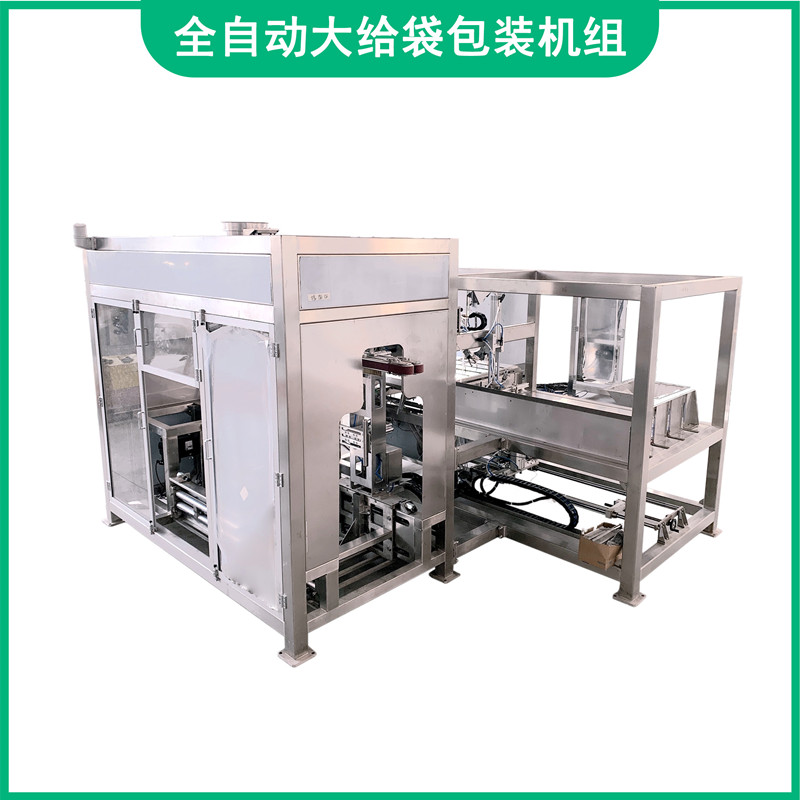

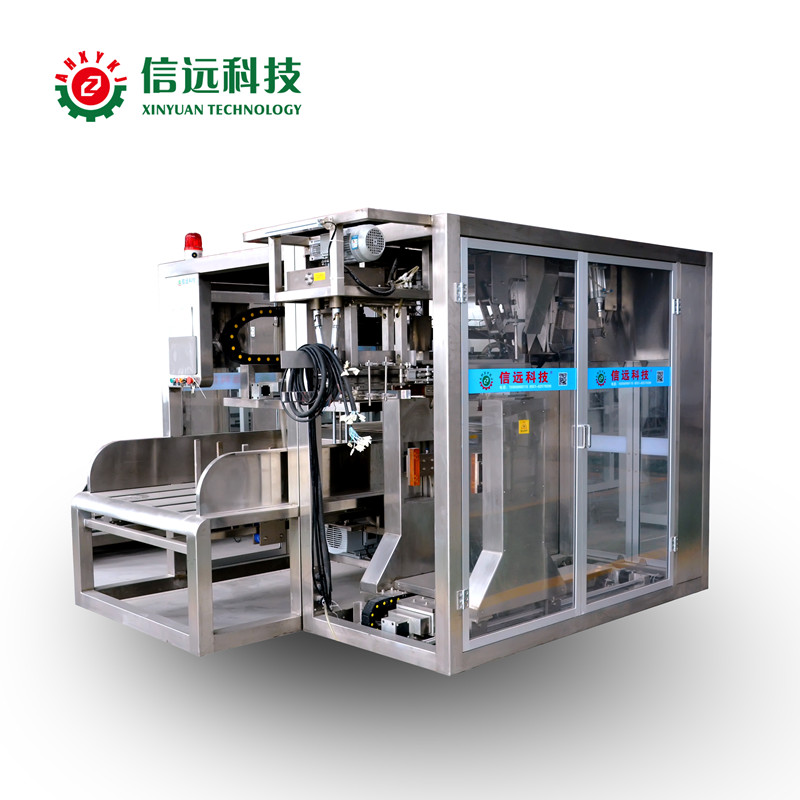

Fully automatic bagging machine is used for automatic weighing and packing for granule material into big bag from 10kg to 50kg. Animal feed packing machine made up of material silo, digital weigher, bag supplying unit, filling packing unit, conveying system and sewing system. Developed by our company to solve the problems of less available workers, higher labor cost and unstable manual operating quality for granule material big bag packing requirement. We supply also subsequent checker weight and robot palletizing system.
Unit configuration: material silo, digital weigher, bag supply system, packing system, conveying system and sewing system
◎Material: contact parts S.S 304 (or S.S 316L if need)
◎Electric parts brand: Siemens/Schneider/Omron/Delta/ABB etc
◎Packing speed: 8~14 bags/min
◎Filling range: 10kg~50kg
◎Applied material: grain, animal feed, NPK or compound fertilizer, chemical material etc.
Technical Data:
Model
XYG-600(fully-automatic
Bag size(mm)
L: 800~1000 W: 450~600
Bag material
Kraft bag, Woven bag, PE laminated bag
Sealing type
Straight sealing
Package range(kg)
10~50
Accuracy
±0.2% to± 0.3%
Speed(bags/hr)
500~800
Power rate(kw)
around 7.5
Power supply
AC 380V/50HZ
Compressed air(Mpa)
0.6~0.8
Noise
around 77dB
Environment Temp.
~20 ℃ to +40 ℃
After-sale service:
Free assignment
of special after-sales service personnel, arrived at the site to guide the
customer installation and commissioning, until successful, and responsible for
training operators, until the customer can operate their own production.
Our business
aim is: honesty and good quality.
Business creed:
it is our eternal pursuit to cast the brand forward and satisfy the customers.
Service tenet:
responsible for every process, responsible for every product and responsible
for every user.
24 hour all-weather telephone service, holidays as usual service.After service telephone:0551-62570198
