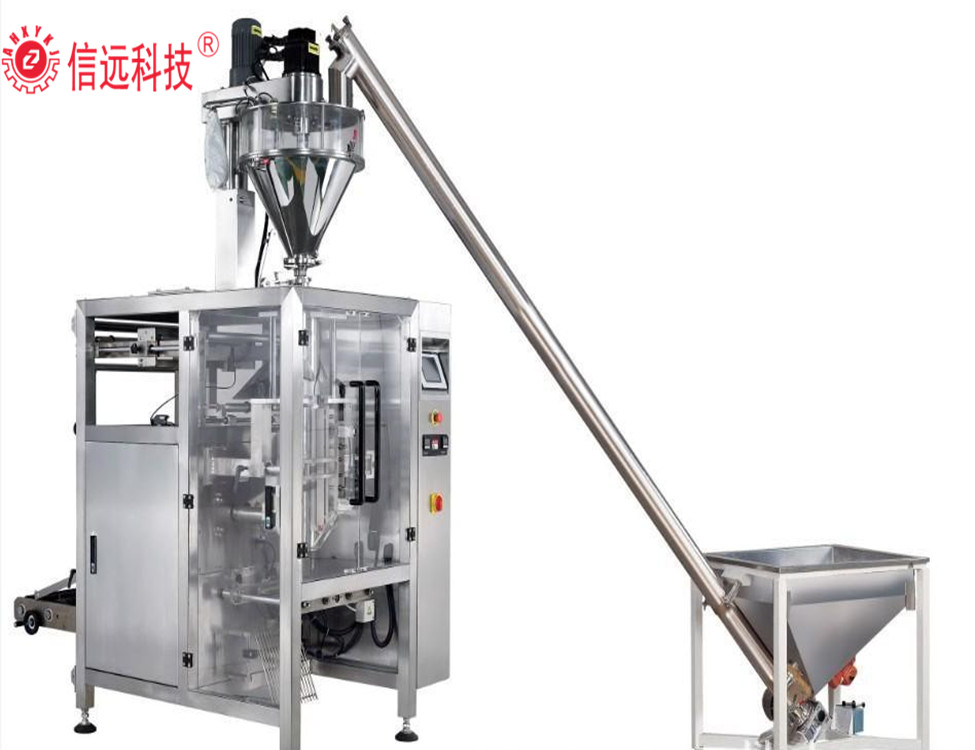

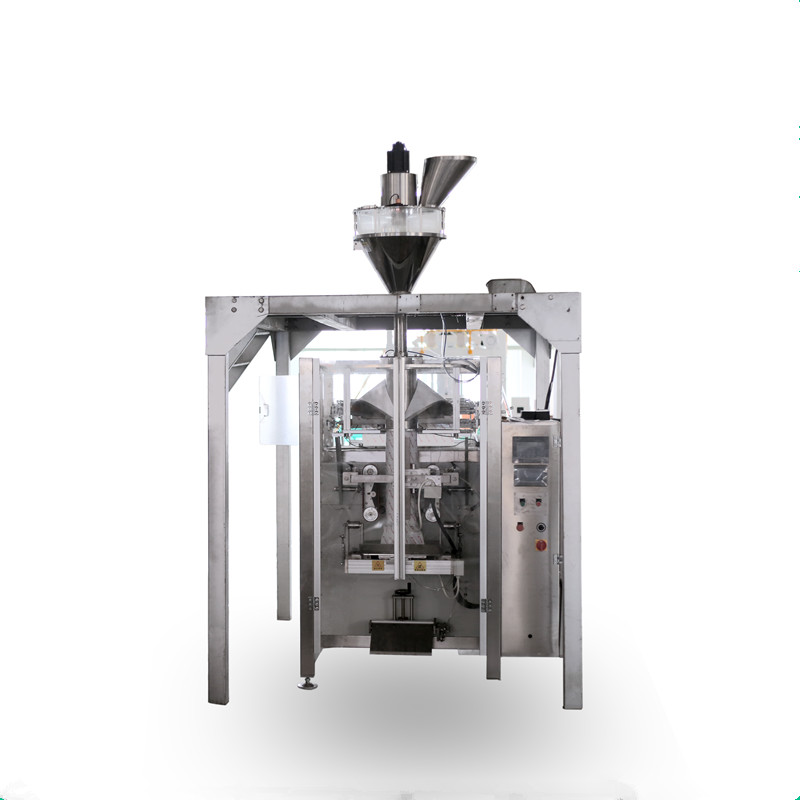

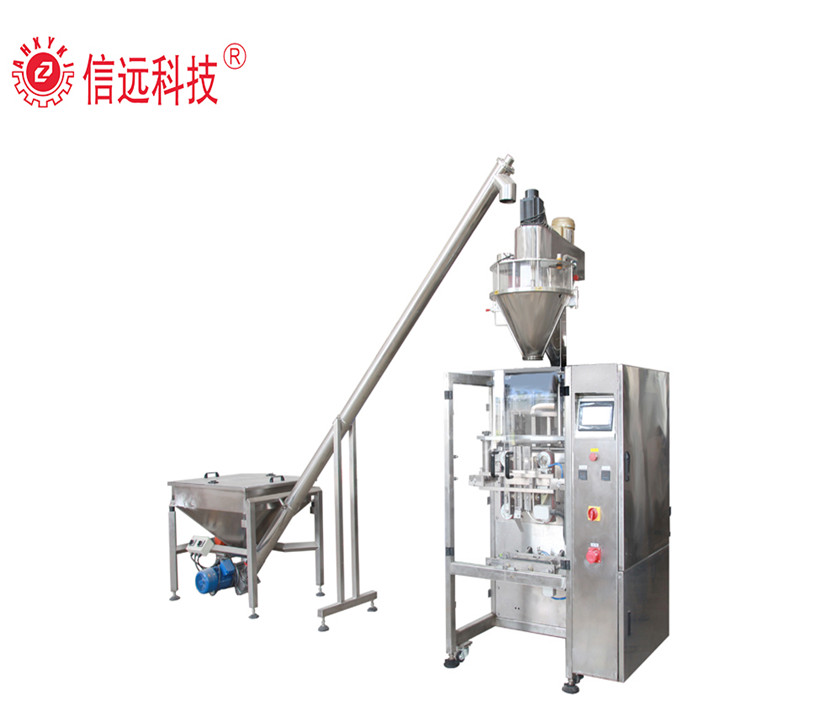

Automatic pouch VFFS vertical powder packing machine is used for automatic weighing and packing for powder material. It is widely used in food, pharmaceutical, chemical, food additives industry, conforming to GMP standard. It can achieve bag forming, material weighing, filling, packing, coding and sealing fully automatically under set parameter.
- Unit configuration: film roller, coder, bag former, filling screw, vertical heat sealing, horizontal heating and cutting
- Material: contact parts S.S 304 (or S.S 316L if need)
- Electric parts brand: Siemens/Schneider/Omron/Delta etc
- Packing speed: (15-60)bags/min
- Filling range: 10g--5000g
- Applied material: powder form material such as flour, chili powder, milk powder, tea powder grain powder etc
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Parameter:
| Model | XY-420 | XY-520 | XY-760 | XY-480 |
| Configuration |
Bag-making packing machine +Auto-filling machine +Conveyor |
|||
| Packing speed(bag/min) | 15~60 | |||
| Measuring range(g/bag) | 10~5000 | |||
| Measuring accuracy | ±0.5% to ±2% | |||
| Bag style | Pillow bag/Four-side-sealing bag | |||
| Bag making size(mm) |
L:50~320 W:60~200 |
L:100~350 W:80~250 |
L:150~450 W:100~360 |
L:50~320 W:70~240 |
| Power supply | AC 380V ±10% 50HZ | |||
| Optional device | Weight sorter/Metal dector | |||
Transportation&After Service
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
